Thermaltake Pacific PR22-D5 Plus Addressable RGB LED 5-Speed Adjustable D5 Pump/Reservoir Combo 3-Port G 1/4″ Thread Tt LCS Certified Cooling CL-W187-PL00SW-A
$189.99
Price: $189.99
(as of Jan 05, 2025 12:51:32 UTC – Details)

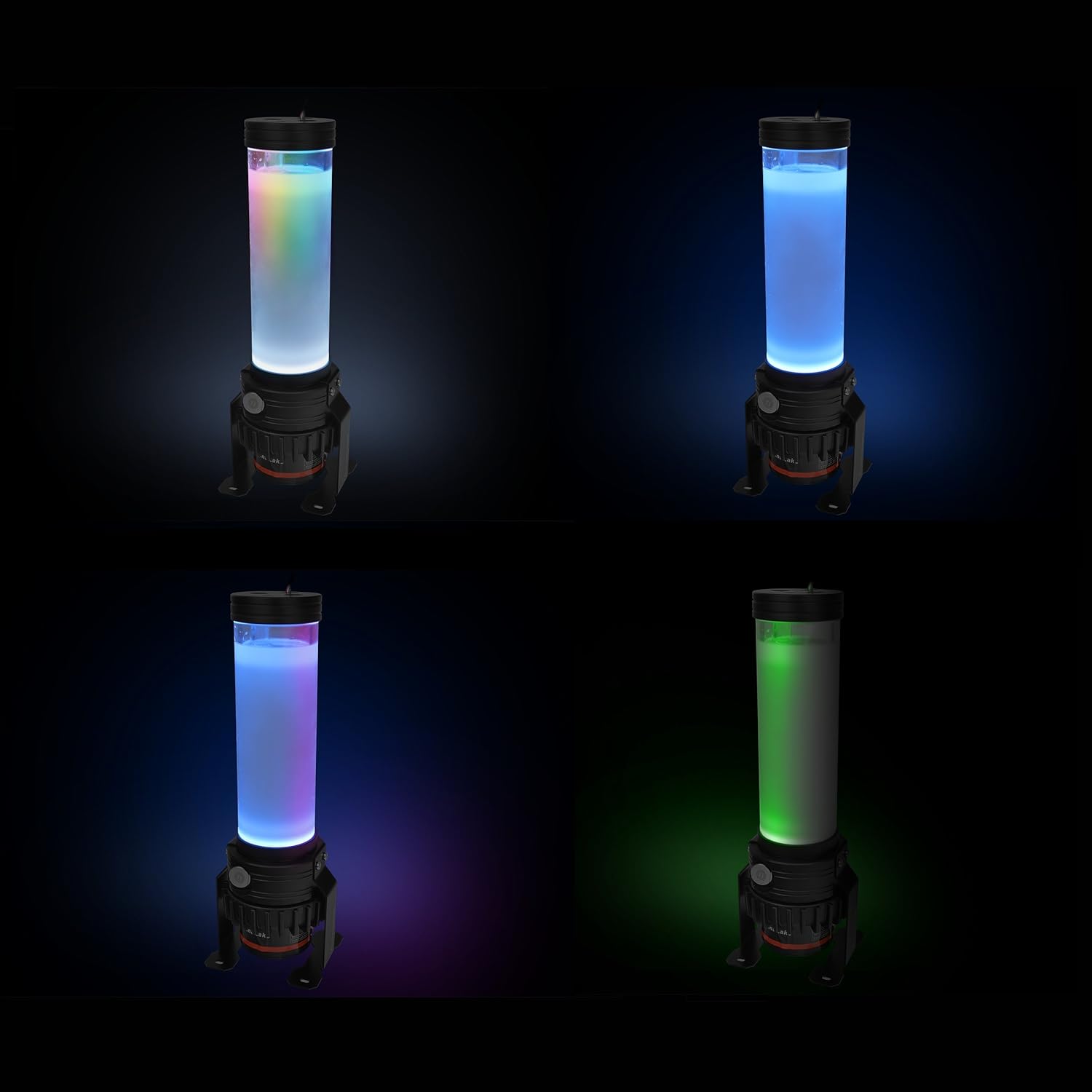

Thermaltake Pacific PR22-D5 Plus Reservoir/Pump Combo is a high-quality 300ml reservoir with an integrated D5 pump and a 16.8 million colors LED cap. Made of POM and PMMA materials, this unit can sustain the maximum pressure up to 99 PSI, and achieve maximum discharge up to 1135L/hr that offer exceptional performance, unrivalled reliability. With multiple mounting options, the Pacific PR22-D5 Plus is the right choice for PC enthusiasts, making your system a showcase for all to see.
P/N: CL-W187-PL00SW-A
Dimension: 94.1 (L) x 87.4 (W) x 309.7 (H)
Material: POM+ PMMA
Capacity: 300 ml
Maximum head: 15 feet (4.5m)
Maximum Flow Rate: 1135 L/h
Maximum pressure: 50 PSI
Input Voltage : 12 V / 5 V
Power Input: 37 W / 6.5 W
Connector: 4 Pin
Pump Speed
P1: 1,800 RPM
P2: 2,550 RPM
P3: 3,300 RPM
P4: 4,050 RPM
P5: 4,800 RPM
Screw Thread
G ¼
Parts
1.Stopper *1 (G 1/4 )
2.Bracket *2
3.Clip *2
Interface
USB 2.0 Connectors(9 Pin)
System compatibility: Windows 7 / 8 / 8.1 / 10
Is Discontinued By Manufacturer : No
Product Dimensions : 12.2 x 3.4 x 3.7 inches; 1.8 Pounds
Item model number : CL-W187-PL00SW-A
UPC : 841163000854
Manufacturer : Thermaltake USA Direct
ASIN : B0784BGN6Q
Country of Origin : China
12 Separately Controlled RGB LEDs for unrivaled Lighting Control
5 Speed Adjustable Pump Control
1135L/hr High Lift Pump Performance
POM and PMMA Construction
Anti Vibration Mounting Brackets
Customers say
Customers find the pump functional and quiet. They appreciate its good looks and value for money. However, some customers have issues with leakage, durability, and mounting options. There are mixed opinions on the build quality.
AI-generated from the text of customer reviews
11 reviews for Thermaltake Pacific PR22-D5 Plus Addressable RGB LED 5-Speed Adjustable D5 Pump/Reservoir Combo 3-Port G 1/4″ Thread Tt LCS Certified Cooling CL-W187-PL00SW-A
Add a review
Related Products
$189.99
Dominick D –
Filter out the BS
First, I’ll say I do not like Thermaltake. Their software for the RGB is annoying. With that being said, their hardware is exceptional. I have been building PC’s and using Thermaltake products for many years. This pump in particular has been in two different builds over the past year and half. It runs strong, is super quiet, and I can trust that it is going to last a long time. In the current machine it is pumping through 2 360mm radiators and no problem with flow.
Chris H –
No significant problems
The reservoir is watertight, assuming you make the connections properly, and the pump is quiet on its highest setting. That’s the most important things to me. The inlet tube makes sure air trapped at the top of the reservoir doesn’t get entrained into the water flow and circulated out into the system. It’s a common feature on reservoirs, but some don’t have a long enough tube. The mounting is a little clunky, I mount it to the floor of the case and I don’t need the vertical mount bracket sticking out the back and making it look part finished. The pump wiring is long and colorful, which doesn’t go with the black wiring on the cap. The pump/reservoir comes with a USB hub with another Molex connector, seems like they could have done something to reduce the wiring. It also comes with a micro USB cable for connecting to the motherboard. Fortunately my motherboard has plenty of USB connectors, and I don’t need any of the conventional USB headers, so this wasn’t a problem. In my case the pump drives water through two water blocks, two large radiators, and an inline mesh filter rapidly enough to keep the exit temperatures from the water blocks down to 10C over ambient. If I need another reservoir/pump this would be high on my list. I bought it on sale, so it was an easier choice at that time.
HunterCage –
Overall it’s a great pump. The controller sucks and the rgb wires are trash. Also laing and Goulding
make them. Which is a plus.Wish I got a laing because theh are the best but this Goulding one seems to be working out very. Great pump over all. The rgb wires on mine also ripped because TT did a terrible job at this part and didn’t seal or glue them into the housing. They just let a pair of wires soldered to the top very very very thin like 24-26ga wires, which is junk. Bet this is more TT than goulding/laing.The pump is strong and powerful and to the people who wanted a better pump speed selection location. You are ignorant in pumps That isn’t how it works, Laing and Goulding pumps work like that. Most 1 block and 1 rad designs only need level 3 to 3.5 at most. 4 if you have a gpu block and 5 if you have 2 rads. A gpu block and cpu block, hell even 5 seems like a but much.Anywhoo, I love the pump. If I had to say one thing I wish the top came off so I can give it a good scrubing when it gets dirty and so I can burp my water easier and use bigger bottles to pour it all in.Not sure how people jeep having theirs die? The pump portion is made by a two reliable and high quality pump makers in the aquarium industry with some chinese company making the rest of the housing. I will say though the 12v plug is absolutely trash quality. Like it’s so bad you need to align the pins into a molex connector cause they won’t lie up and the molex plug is made out of milk jug plastic.Overall this pump had a great idea with bad execution on the wiring and rgb options.TT makes good cases but from seeing this I’ll never buy anything TT that is electronic other than their cases they are becoming lower in quality.
Andrew Skadsem –
Looks amazing
Works great and quiet. had one small hiccup few days after installing. pump stopped working tho was no big problem took pump out and cleaned the ceramic ball in it. Have had 0 problems since.
Daniel McKinnon –
Awesome pump/res
Excellent build quality and operation. Non PWM so you’ll have to manually set the desired pump rpm. Kind of tall so it fills in a bit of that unused space. Just beware that the pump speed selector is located on the bottom of the assembly and that could make it tough to change rpm. Flows great, runs quiet. Very happy with it so far.
Cheezewizgumby –
RGB is complicated to setup, but pump is working
Pros:1. Nice looking, be sure to add at least 80% to reservoir.Itâs very quiet when it doesnât have to work hard so make sure once again that you have added about 80% to the reservoir. **** I canât stress this enough. If you turn the pump on and water is still being sucked down the reservoir it isnât quite full yet**** itâs loud when it needs coolant but quiet when it doesnât.2. My configuration: I added a bitspower T-valve to my outlet port at the bottom, straight off the pump. This is working great. I let it bleed for 24 hours with the fill port open to remove bubbles.Cons:1. The instructions are horrible. I have the plus model. I still donât know how to use the RGB cap, theirs a controller and a whole bunch of cables that made my head hurt. If I figure it out Iâll update on how I got mine working.2. Iâm coming from a EKWB kit and the only reason I canât use that one is because the case Thermaltake 900 doesnât have holes pre-drilled for other reservoir/combos but their own.3. No header controls. This is running off a molex connection from your power supply. Be sure to use a jumper to do testing. Not necessary but be efficient.4. I donât believe the lid comes off on the Plus RGB model. I could be wrong but I didnât risk forcefully taking it offTip: if you get some leakage near the outlet port and you have a drain valve running on it, tighten it the best you can with some gripped pliers if possible. You should see your o-ring at all.Update(05/12/2020): I set my pump to 5-speed.My radiator is a 240mm CoolstreamUPDATE: Stopped after a year. Loud grinding noise and now I think it might have burnt up my CPU. Iâm deeply saddened.
Jesus Alexander Herrera Mendieta –
Todo está perfecto, el único detalle es que viene con un controlador que desafortunadamente no funciona , no vas a poder cambiar los colores de la bomba al menos que compres otro controlador por separado de la misma marca. Tendrás que gastar 700 pesos MXN o 35 a 40 dólares más
Henrique Ko –
A construção é muito boa.
Amazon Customer –
really pleased with pump reservoir combo, little overpriced thoughworks perfect lots of power and quiet too
HATTAN ALNUMANI –
GOOD
William –
Nice D5 pump/reservoir It’s not too loud on speed setting 3. Perfect fit for my ITX build , cools my Ryzen 5800x CPU at idle 34c and peak load at 64c. Will have to see later when I add a GPU water block to my FTW3 Ultra 3080 as that can get pretty hot under load.Not disappointed at all with this pump.
